Description

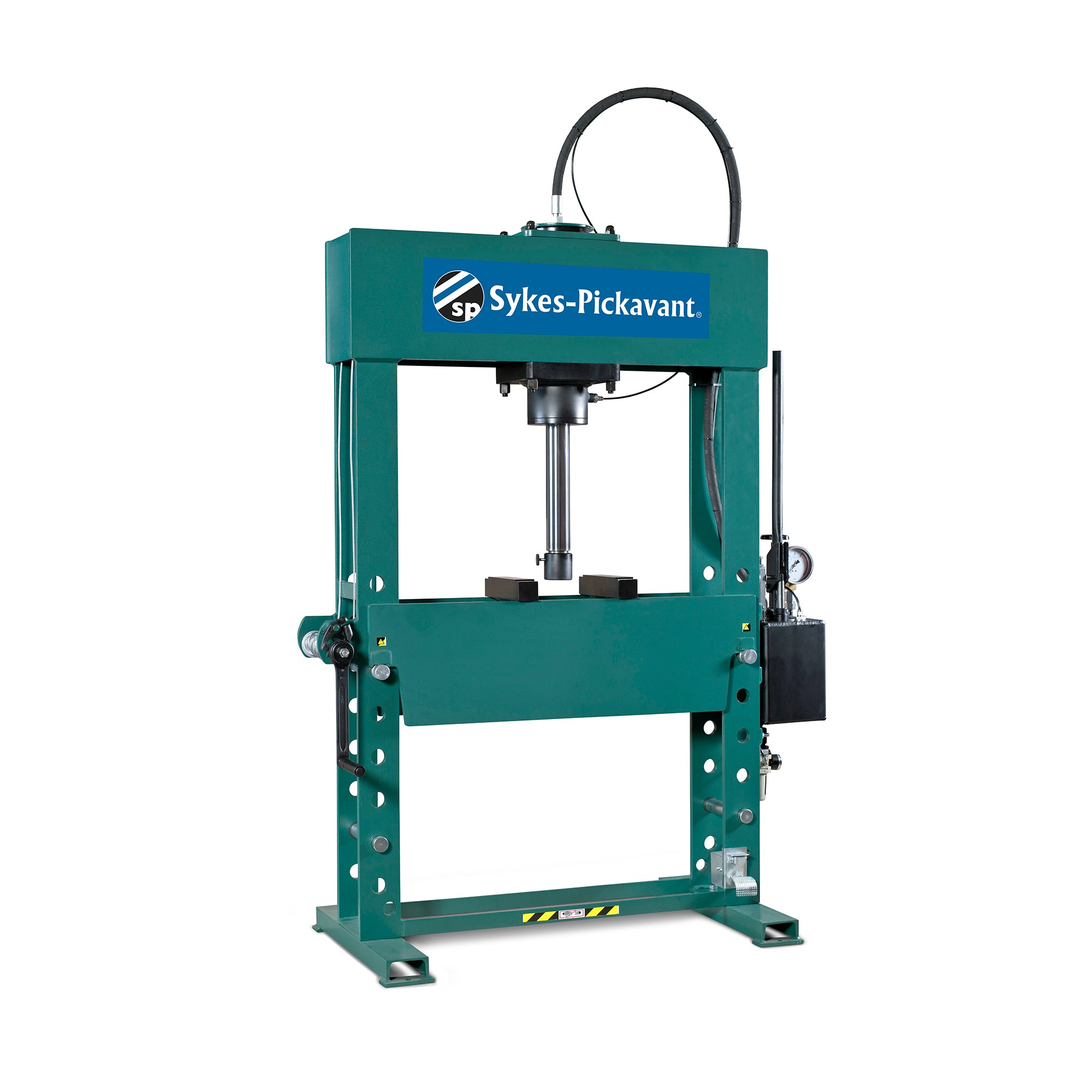

53416000 – 60 Tonne Hand/Foot Operated Pneumatic Hydraulic Workshop Press
Designed for demanding automotive, commercial vehicle and engineering applications, the Sykes-Pickavant 60 Tonne Pneumatic Hydraulic Workshop Press delivers exceptional pressing force, precise control and operator efficiency. Combining manual hydraulic power with pneumatic assistance, this workshop press is ideal for high-volume environments where productivity, safety and reliability are essential.
With a generous working area, moveable cylinder and wide insertion width, the 53416000 is capable of handling large components and challenging pressing operations. The integrated foot-operated air approach system allows rapid positioning of the ram, reducing operator effort and speeding up workshop processes.
Key Features & Benefits
60 Tonne Pressing Capacity
Provides the force required for heavy-duty bearing work, bush installation, axle and suspension component servicing, straightening applications and general engineering tasks.

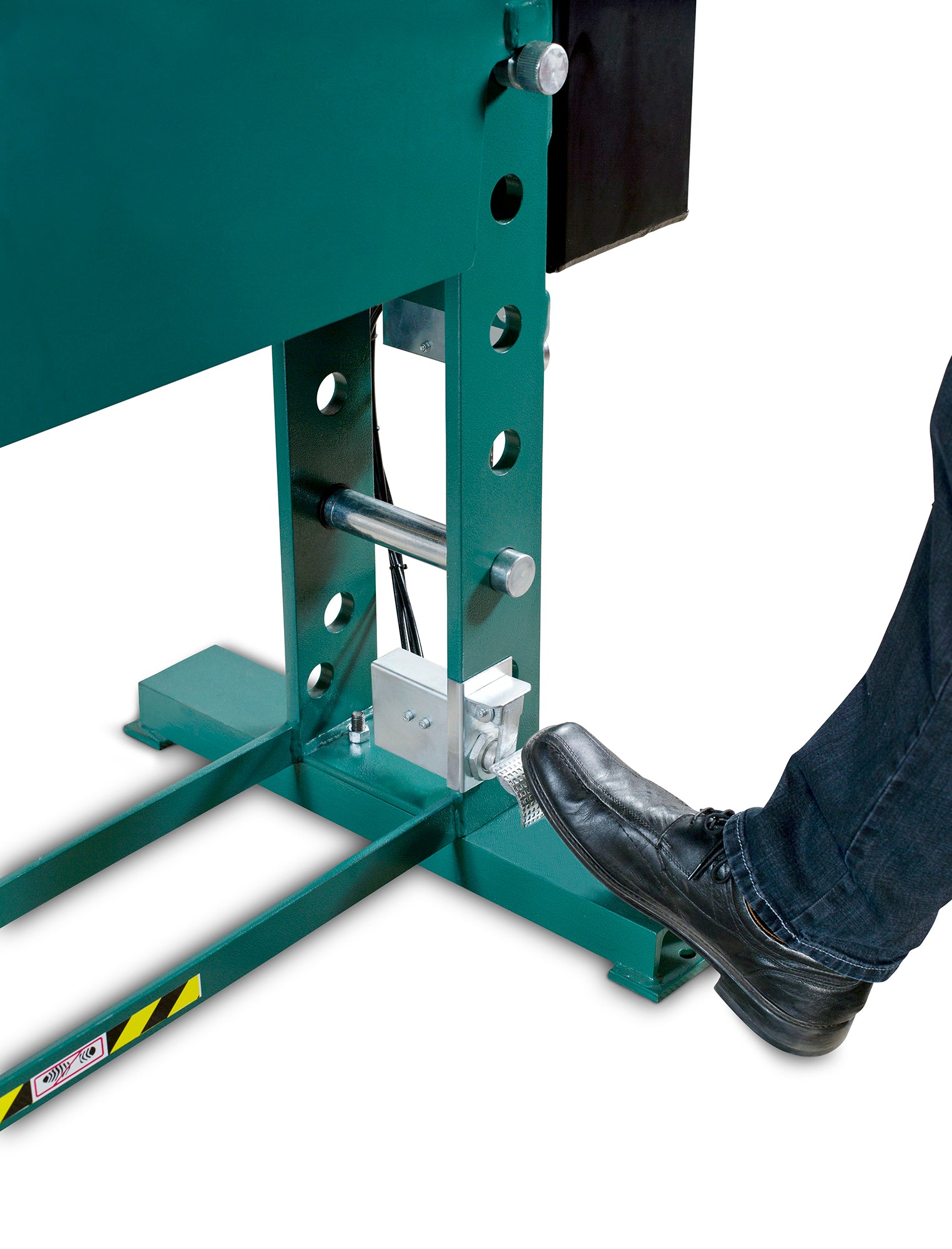

Pneumatic Foot-Operated Approach
The foot-operated air-assisted system enables quick ram positioning while leaving the operator's hands free to position components accurately and safely.

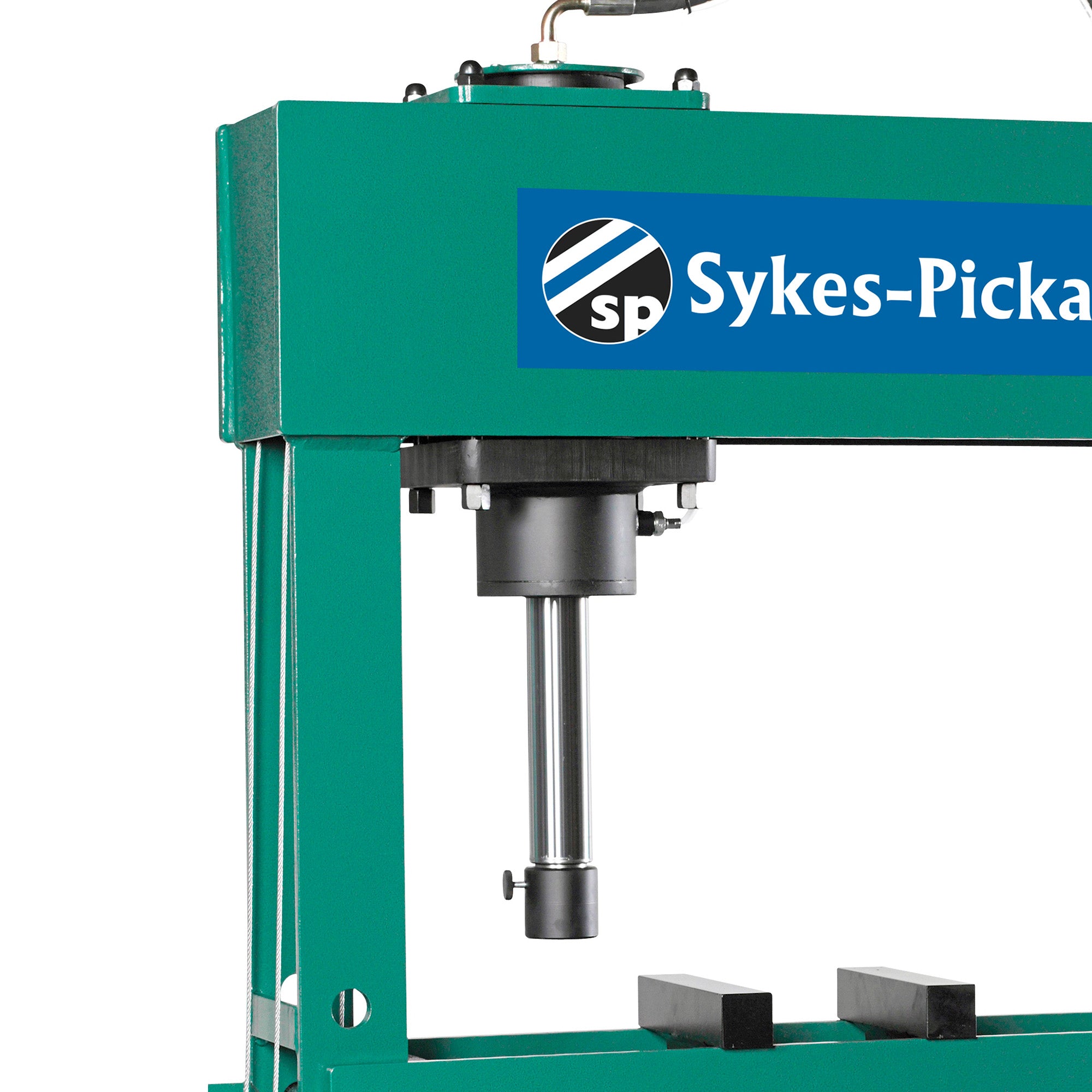

Moveable Hydraulic Cylinder
Allows pressing force to be applied exactly where needed, providing greater flexibility when working with oversized or irregularly shaped components.

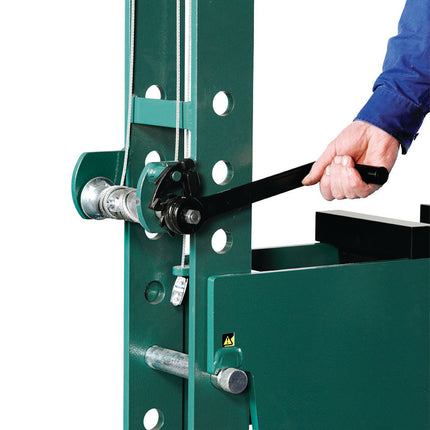

Adjustable Press Bed with Braked Winch
The press table can be adjusted quickly and safely using the integrated braked winch system, helping to reduce setup times and improve workflow efficiency.
Fast Air Return
Speeds up operation between pressing cycles, helping workshops increase throughput and reduce downtime.
Built for Long-Term Durability
Features a hard chrome piston, heavy-duty construction and integrated water separator for reliable performance in busy workshop environments.
Specifications
-
Capacity: 60 Tonne
- Operation: Hand & Foot Operated
- Working Area: 760 (H) x 1005 (W) mm
- Cylinder: Moveable
- Stroke: 300mm
- V Blocks: 2 included
- Warranty: 3 Years
-

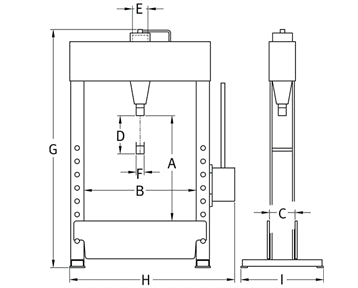

Dimensions:
- A: 760
- B: 1005
- C: 255
- D: 300
- E: 160
- F: 80
- G: 2100
- H: 1615
- I: 710
- Weight: 690kg
Optional extras:
